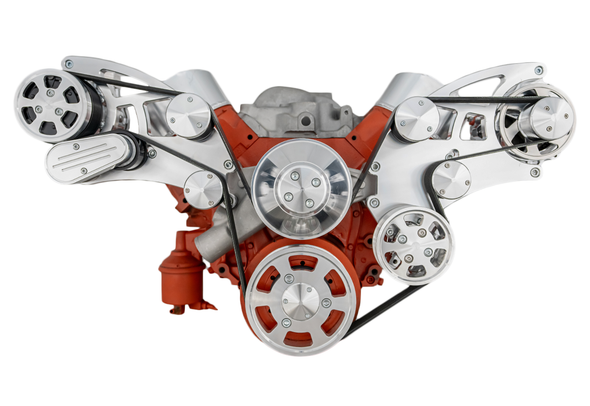

Chevy Small Block 283-302-327-305-350 & 400 Wide Mount Wraptor Kit

All Inclusive Wraptor™ 8 Track Wide Mount Serpentine System for Chevy Small Block engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.

ALL INCLUSIVE KIT INCLUDES:

• High Flow Aluminum Water Pump
• 140 Amp Chrome 1-Wire CS130 Alternator
• Chrome AC Compressor*
• AC Compressor Clutch Cover*
• Chrome Plated Aluminum GM Type II Power Steering Pump*
• Remote Mount Reservoir with Bracket*
• Gates Premium Green Strip 8 Rib Belt
• Water Pump Pulley & Cover
• Crank Pulley
• Alternator Pulley & Cover
• Power Steering Pulley*
• Two Piece Billet Aluminum Bracket
• Universal Alternator Fan

APPLICATION NOTES:

• Works with either Mechanical or Electric fuel Pump
• Works with either Mechanical or Electric fan
• Works with Standard Deck Engines (will not work with Tall Deck Engines)
• Power Steering Lines from pump to reservoir not included

IF ORDERING WITHOUT ACCESSORIES, PLEASE CALL 651.356.8593 BEFORE ORDERING AND SEE THE REQUIREMENTS BELOW:

• Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
• Power Steering Pump - GM Type II Pump
• Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch
• Water Pump - 5.7" Tall, Reverse Rotation, 5/8" Pilot and Lower Radiator Hose on Driver Side
