Description

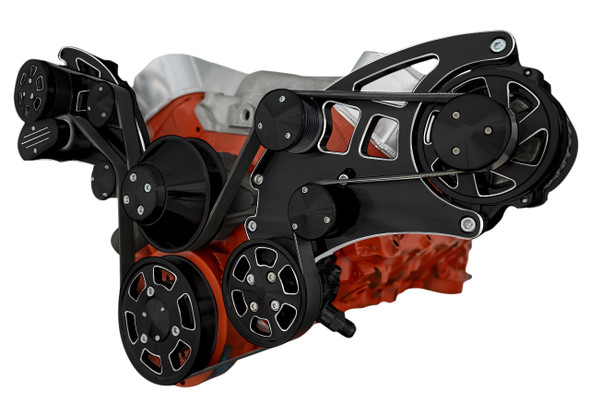

Chevy Big Block 396 - 427 - 454 Wide Mount Wraptor Kit
All Inclusive Wraptor™ 8 Track Wide Mount Serpentine System for Chevy Big Block engines with 140 Amp alternator, GM Type II Power Steering Pump and Peanut Style AC compressor. CVF Racing's 8 Rib Serpentine pulleys increase grip, reduce stretching and prevent slipping compared to traditional 6 Rib designs. Spring loaded Gates tensioner ensures proper tension during hard acceleration and deceleration while compensating for belt stretch. Places alternator on the driver's side above the power steering pump.
ALL INCLUSIVE KIT INCLUDES:
- High Flow Aluminum Water Pump
- 140 Amp Black Plated 1-Wire CS130 Alternator
- Black Plated AC Compressor*
- AC Compressor Clutch Cover*
- Black Plated Aluminum GM Type II Power Steering Pump*
- Remote Mount Reservoir with Bracket*
- Gates Premium Green Strip 8 Rib Belt
- Water Pump Pulley & Cover
- Crank Pulley
- Alternator Pulley & Cover
- Power Steering Pulley*
- Two Piece Billet Aluminum Bracket
- Universal Alternator Fan
APPLICATION NOTES:
- Works with either Mechanical or Electric fuel Pump
- Works with either Mechanical or Electric fan
- Works with Standard Deck Engines (will not work with Tall Deck Engines)
- Power Steering Lines from pump to reservoir not included
IF ORDERING WITHOUT ACCESSORIES, PLEASE CALL 651.356.8593 BEFORE ORDERING AND SEE THE REQUIREMENTS BELOW:
- Alternator - GM CS130 Style Alternator with 6-12 O'clock mounting and 6.6" bolt spacing
- Power Steering Pump - GM Type II Pump
- Compressor - Peanut Style (7B10) Compressor with 8 Rib Clutch
- Water Pump - 5.7" Tall, Reverse Rotation, 5/8" Pilot and Lower Radiator Hose on Driver Side
Additional Information
Product Type: |
Wraptor - All Inclusive |
Alternator Position: |
Mid - Driver |
Power Steering: |
Yes |
Air Conditioning: |
Mid - Passenger |
Compressor Type: |
Sanden Peanut 7B10 |
Finish: |
Black Diamond |
Belt Type: |
Serpentine 8 Rib |
Water Pump Type: |
Mechanical |
Water Pump: |
Short |
Water Pump Rotation: |
Reverse |
Make: |
Chevy |
Engine: |
350 Small Block |
